Self-Centering Guage Doweling Jig

Our Self-centering Guage Doweling Jig can accurately find the center of a board’s edge every time; no measuring and no tedious trial and error adjustments required. This makes it the perfect tool for both mortise and tenon layout and drilling dead-on aligned dowel joint holes.

Features:

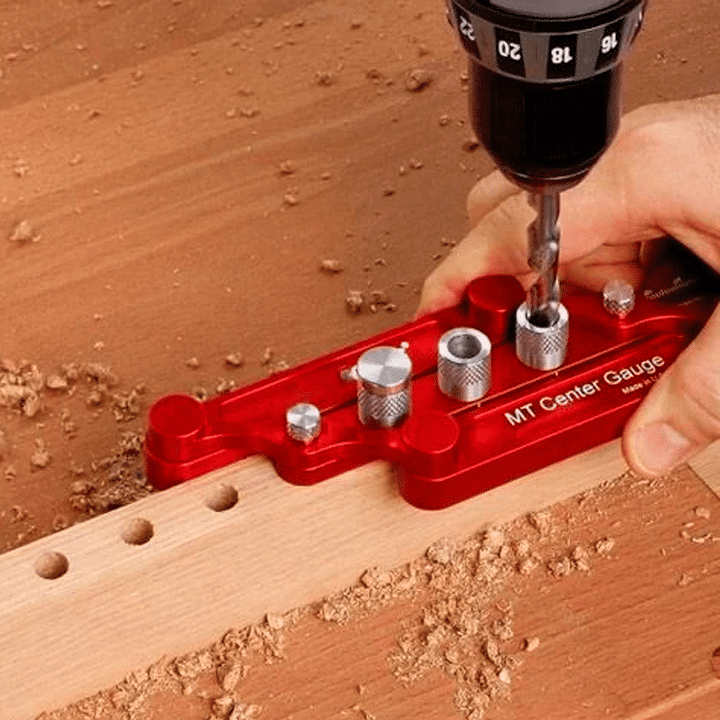

  • To switch to doweling mode, remove the marking bar and attach the doweling jig bar. To use, simply align the precision-machined notches on the jig’s doweling bar with the dowel location mark on your board, hold the jig and drill. Slide the jig to the next location, align and drill. No need to clamp the jig or tighten knobs.

Self-Centering Guage Doweling Jig

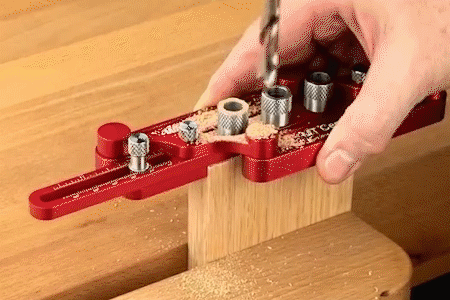

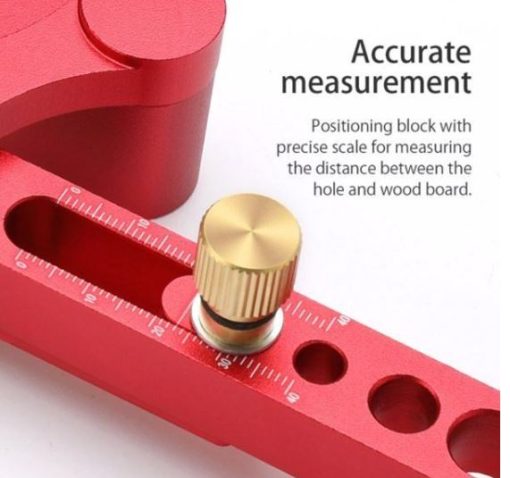

  • Features Not Found On Other Jigs. Attach the doweling jig’s adjustable end-stop for drilling two or three precisely spaced end-grain holes for alignment of face frame stiles and rails. The handy inch/millimeter scale let you accurately set the stop. What could be easier?

Self-Centering Guage Doweling Jig

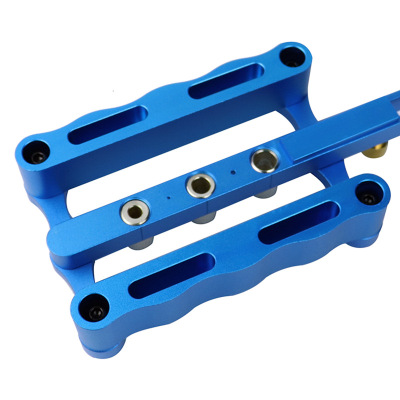

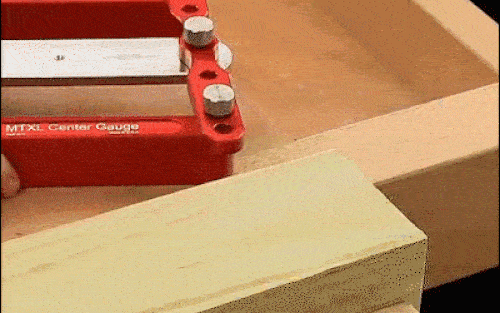

  • Based on the never-fail reliability of a parallelogram , the MT Center Gauge features two, precision-machined parallel arms that quickly adjust to the stock thickness, placing the center bar dead center on the material. Just use a pencil, marking knife, or scribe tool to mark out the center bar location on your stock– and you’re done!

Self-Centering Guage Doweling Jig

  • High-quality and Durable Material – The joinery punch locator is aluminum alloy 6061 steel HRC50(drill bushing) brass (nut). High hardness, quality assurance, durable and long service life.

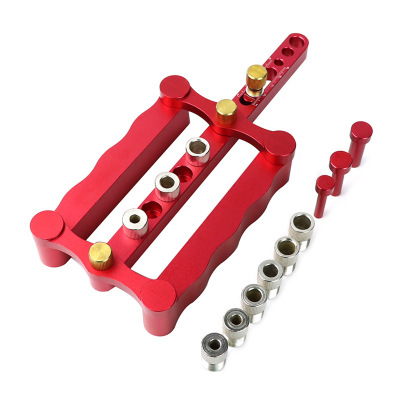

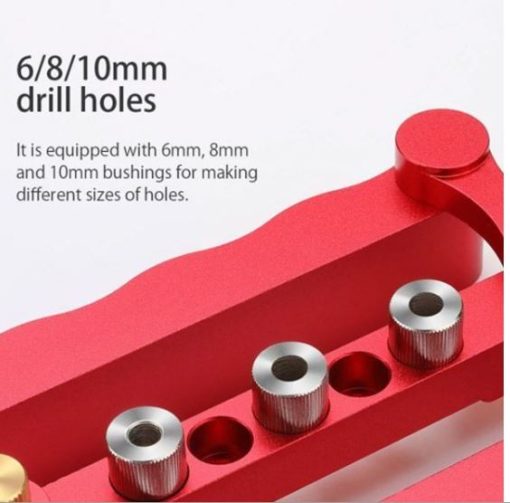

  • High Precision – The joinery punch locator provides improved version comes with 6mm, 8mm and 10mm bushings and 1mm and 2mm scoring hole for making different sizes of holes.

Self-Centering Guage Doweling Jig

  • Adjustable Stop – The joinery punch is specially prepared adjustable stop and drill accurately, which can drill equally space hole along the wood.
  • Convenient and Practical – With the practical joinery punch locator, you can conveniently work for woodworking. It is a great set tool for both furniture factory and woodworking enthusiasts.

Self-Centering Guage Doweling Jig

Specifications:

  • Material: Aluminum alloy
  • Series: Vertical three-in-one straight hole punching locator

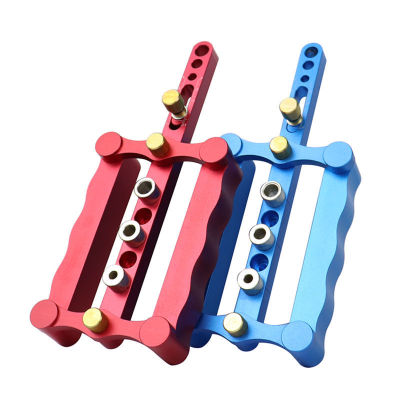

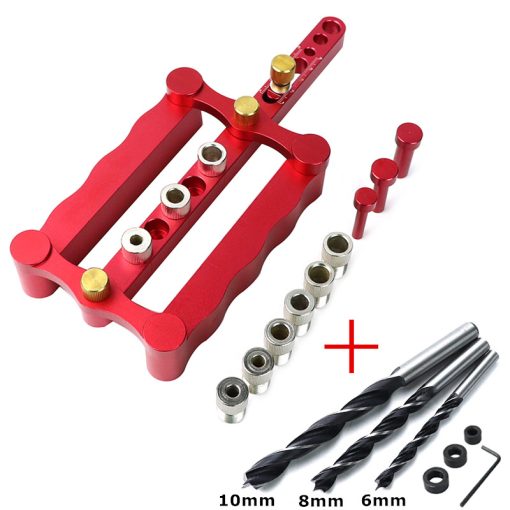

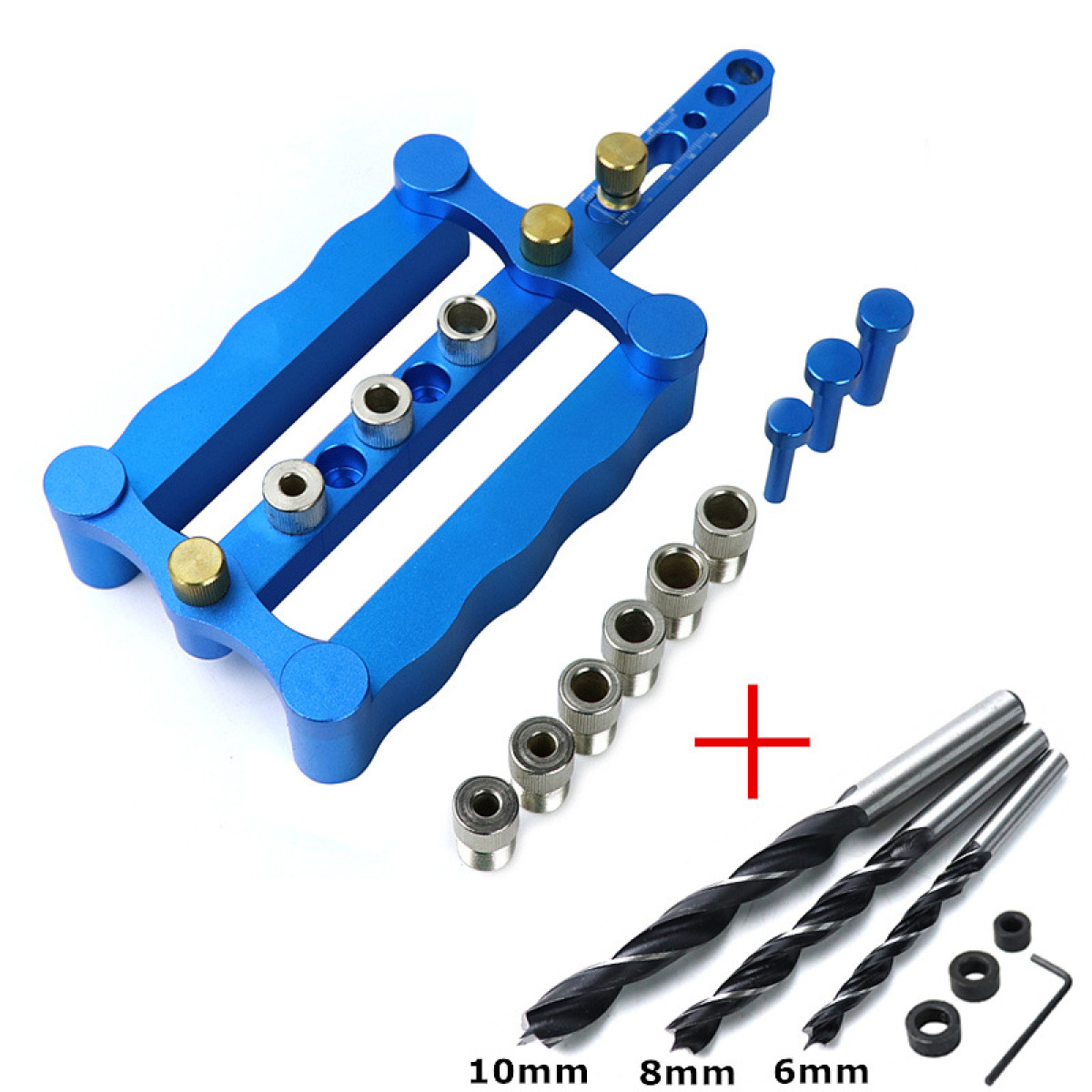

  • Model: red, blue, red + 7-piece drill bit set, blue + 7-piece drill bit set
  • Product weight (kg): 750g

Self-Centering Guage Doweling Jig

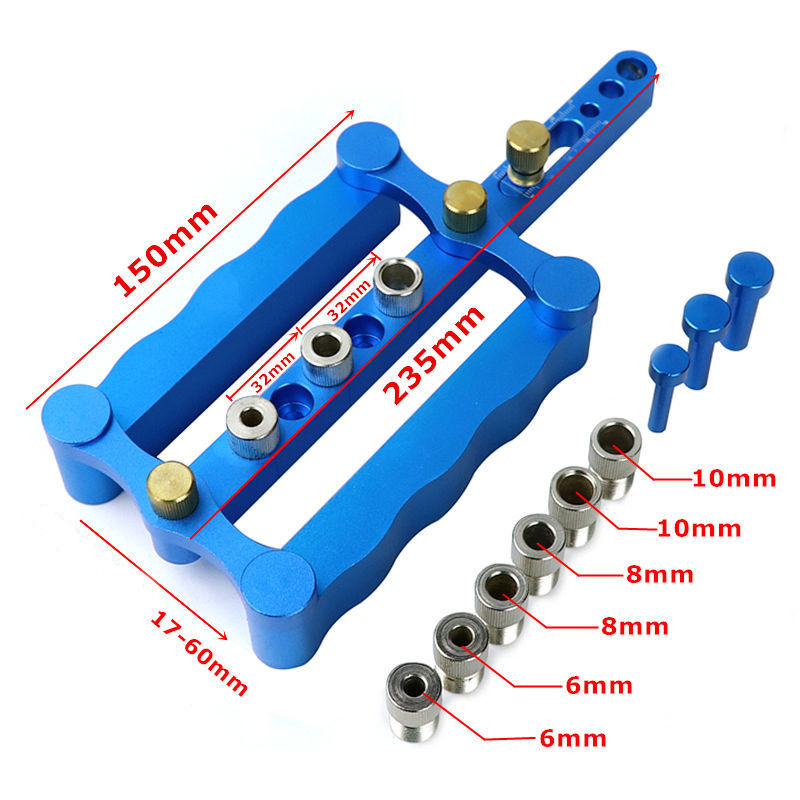

  • Specifications (diameter * full length): 235mm
  • Clamping range: 17-60mm

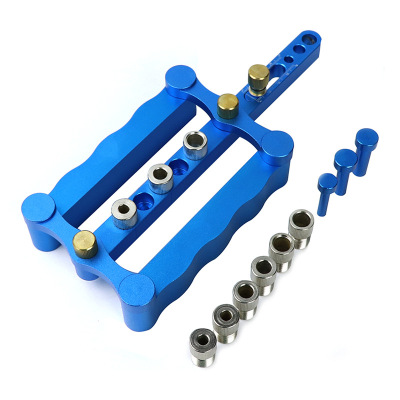

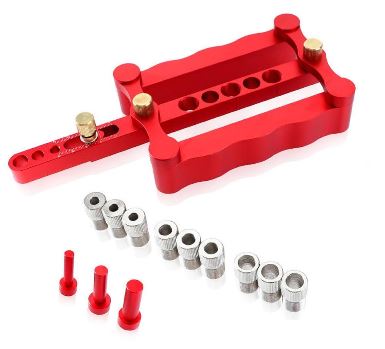

  • Drill sleeve size: 6/8/10mm (three for each size)
  • Pin size: 6/8/10mm (1 for each size)

Package Includes:

  • 1 X Self-Centering Guage Doweling Jig
Reviews (69)

69 reviews for Self-Centering Guage Doweling Jig

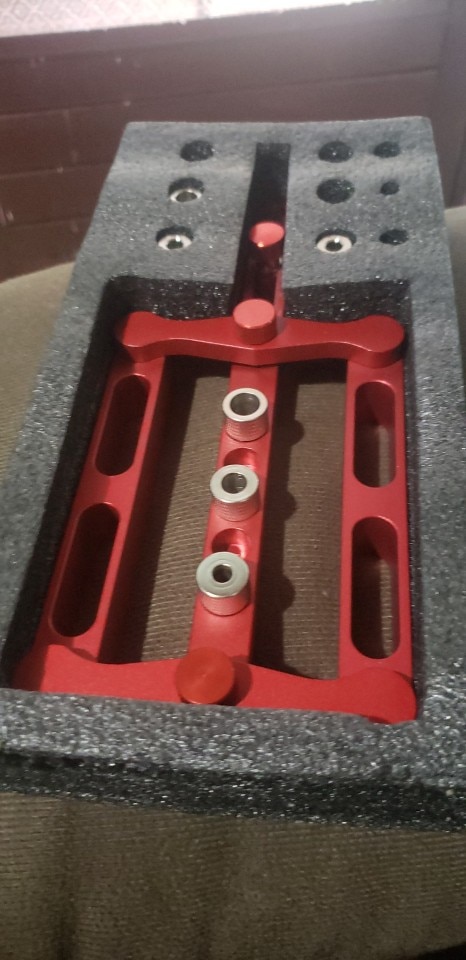

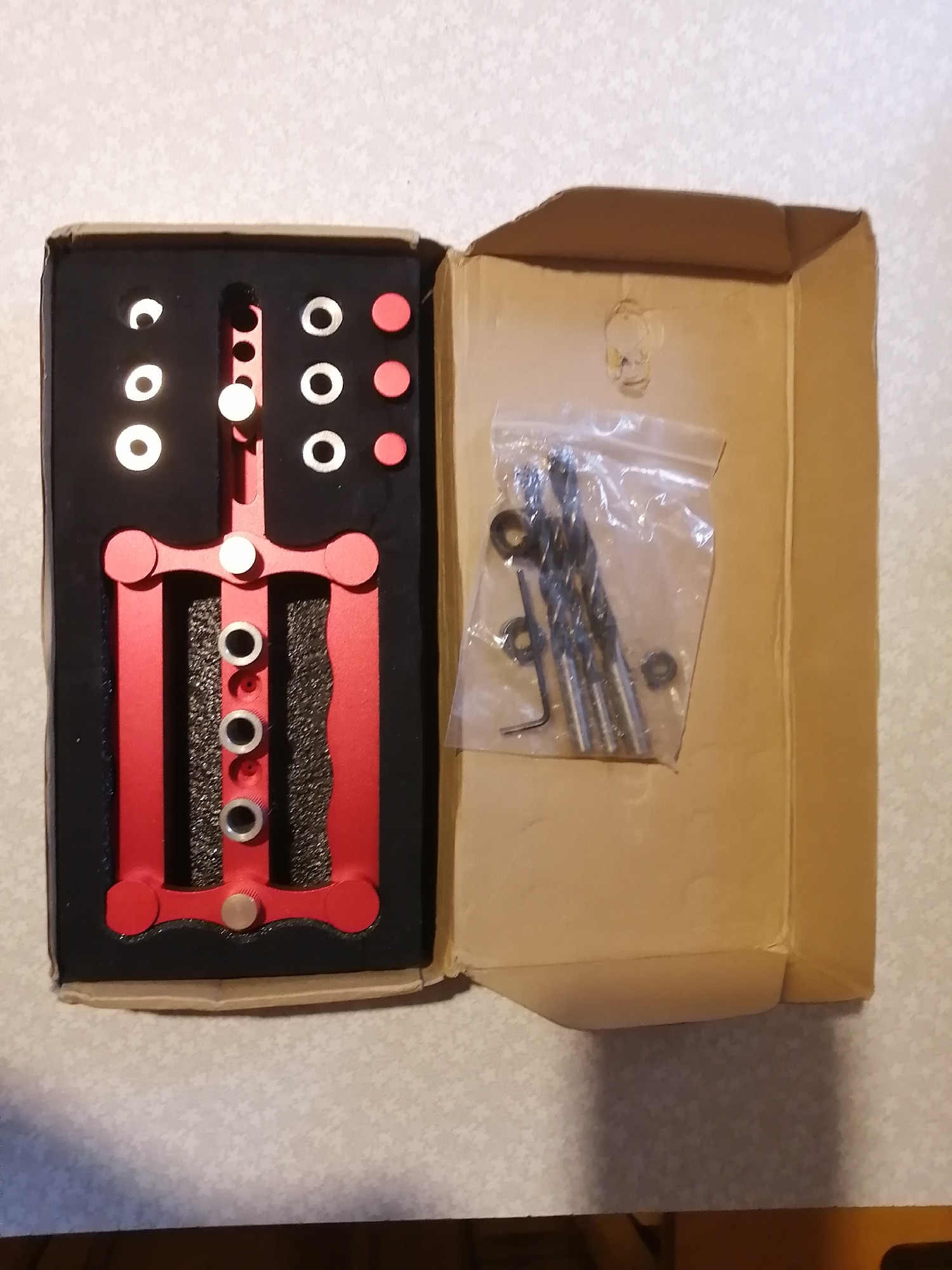

  1. Self-Centering Guage Doweling Jig photo review
    Kelsey SavageVerified Purchase
    This little tool is great. Glad I didn't go with a pricier option, this did exactly what I needed (making pocket holes in 2x4s, 3/4” and 1/2 ply piece...More

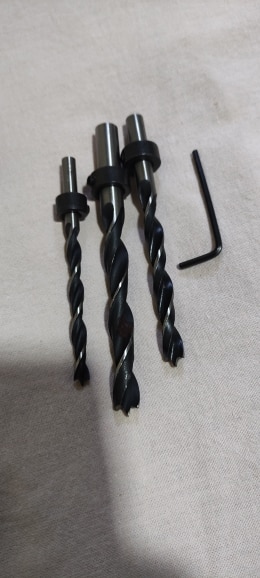

    This little tool is great. Glad I didn't go with a pricier option, this did exactly what I needed (making pocket holes in 2x4s, 3/4” and 1/2 ply pieces). You do need a screwdriver with a socket that fits round shank attachments to use the included drill bit, drill bit does not fit into an impact screwdriver.

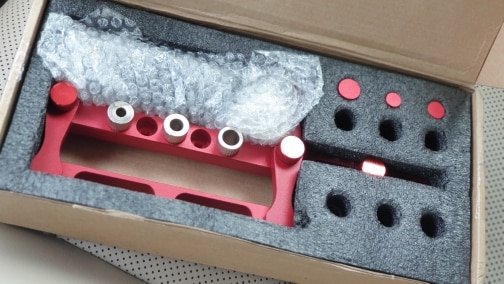

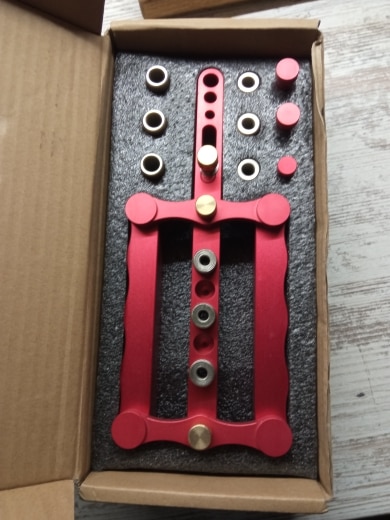

    Self-Centering Guage Doweling Jig photo review
    Haydn FloydVerified Purchase
    Great jig, particularly for the cost. I make a lot of tables/furniture out of 3/4" material, and this is perfect for that. Any more or less and you mi...More
    Great jig, particularly for the cost. I make a lot of tables/furniture out of 3/4" material, and this is perfect for that. Any more or less and you might have trouble. I had the $40 kreg system before this and accidentally poured resin on it, thereby ruining it. So I shopped for an alternative. This is what I needed. Made 4 legs for some end tables in about 1/3 the time than with my old jig, and with almost none of the wrist strain. Real easy to screw to a workbench and fly through material. No issues with the bit breaking yet or poor machining. But I've had about 3 kreg bits bust on me anyways, so I expect it eventually. Once again, great for 3/4" material. Don't expect it to work well on other thicknesses.

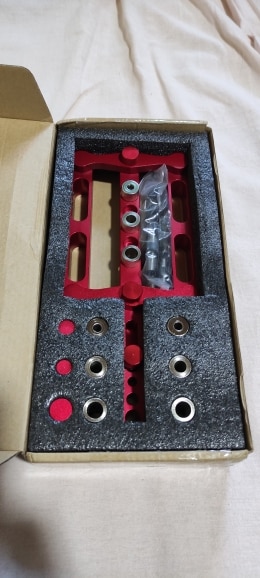

    Self-Centering Guage Doweling Jig photo review
    Bailey SharpeVerified Purchase

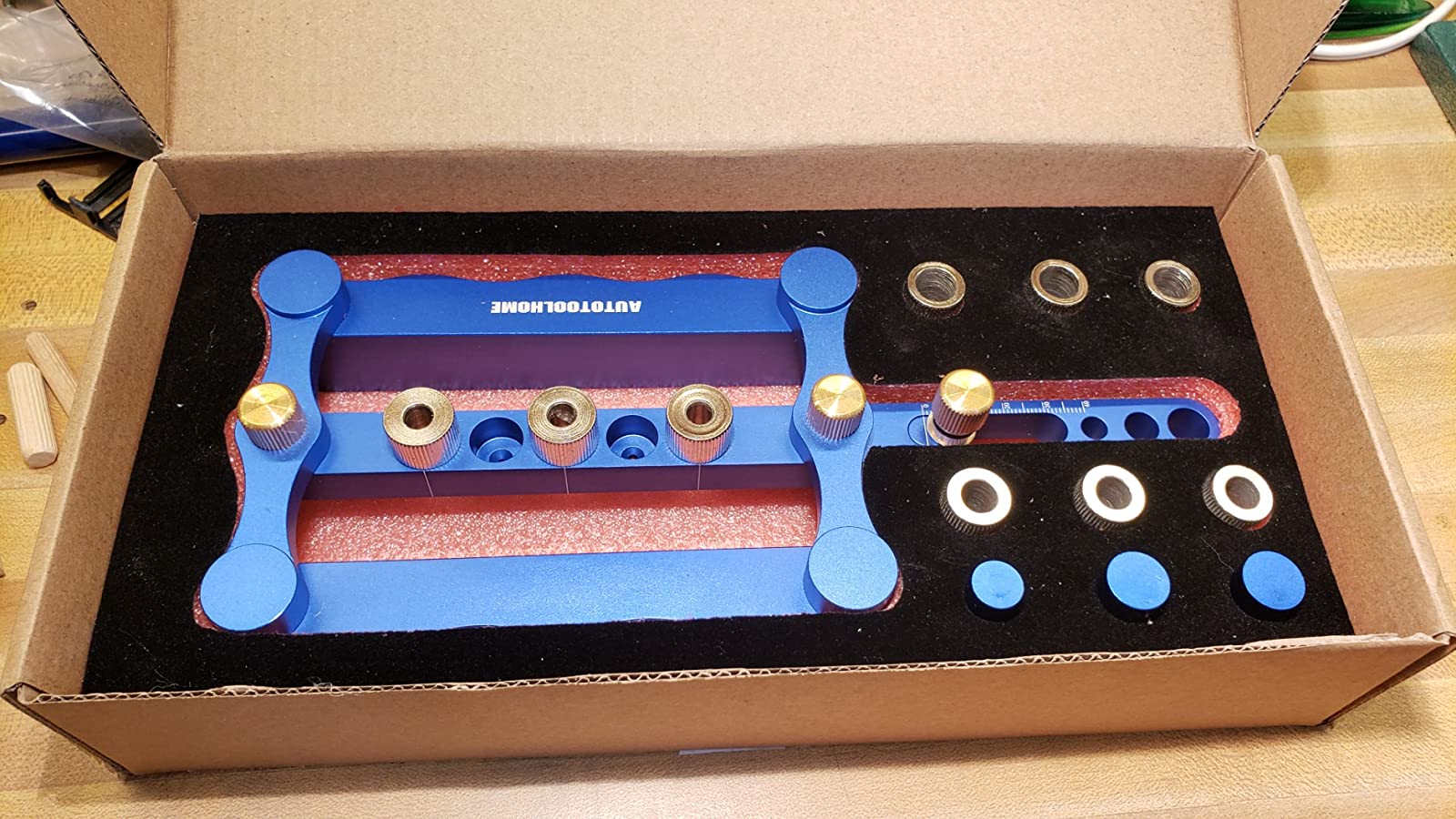

    Looks great and should work as it is supposed to. Had another one but I cannot find it. I was hoping it would show up once I purchased the new one sin...More
    Looks great and should work as it is supposed to. Had another one but I cannot find it. I was hoping it would show up once I purchased the new one since I had built different bushings for it. No such luck. Oh well I will make new bushings for this one then I will probably find it. The drill bit is actually good. If you use it wrong it will break. I had 5 years on one bit before I dropped it. Made a new better cobalt bit on my lathe with a tool post grinder. Used correctly it will make useful pocket holes very easily.
    Self-Centering Guage Doweling Jig photo review
    Elisha CastanedaVerified Purchase
    It's very similar to the Kreg pocket jig kit, but I do wish it had a setting for different types of wood and nail length like the Kreg one has. You ca...More
    It's very similar to the Kreg pocket jig kit, but I do wish it had a setting for different types of wood and nail length like the Kreg one has. You can split the wood if you were not careful, but it honestly works great for my needs and you can't beat the price!
    Self-Centering Guage Doweling Jig photo review
    Willow SykesVerified Purchase
    Over the summer I built a set of tables using my fathers name brand unit. After finishing it felt like I was missing one piece and I decided to add an...More
    Over the summer I built a set of tables using my fathers name brand unit. After finishing it felt like I was missing one piece and I decided to add an end table. Dad had taken back his tools so I came here looking for a set of my own. After seeing the price difference I started reading some reviews and decided to pick this kit up. The kit has everything that you need to get started and I found it easier to use. The size of the unit and space in the clamp is enough to use it with 2” stock, it was also easy to adjust and versatile enough to use with the 1” that I used for my project. The quality of the materials and the ease of use make this as good of a product as the name brand. The materials fit the bill and I have no real complaints about this purchase.
    Self-Centering Guage Doweling Jig photo review
    Neo MorseVerified Purchase
    I'm a DIY'er and this woodworking kit not only makes my projects easier, but it speeds up the process as well. Whether you're a beginner or experience...More
    I'm a DIY'er and this woodworking kit not only makes my projects easier, but it speeds up the process as well. Whether you're a beginner or experienced diy'er this product is a must.
    Self-Centering Guage Doweling Jig photo review
    Cory KelleyVerified Purchase
    Love this pocket hole jig, I originally bought one about 10 years ago and it was awesome through all my woodworking projects, after I moved I lost it,...More
    Love this pocket hole jig, I originally bought one about 10 years ago and it was awesome through all my woodworking projects, after I moved I lost it, now I purchased another! I recommend this to any diy'r or professional!
    Self-Centering Guage Doweling Jig photo review
    Belle SimsVerified Purchase
    I got this during prime days and recently used it on a project. I have never used pocket holes before but was building a mud room bench and didn't wan...More
    I got this during prime days and recently used it on a project. I have never used pocket holes before but was building a mud room bench and didn't want to nail or screw from the top. I put the pocket holes on the 2x4 frame pieces and screwed into the 3/4” plywood seat. Worked out perfectly!
    Kiran BoothVerified Purchase
    Am not a talented woodworker but I built my own mobile cart for the garage and used this to help attach some trim around the edges from the inside to ...More
    Am not a talented woodworker but I built my own mobile cart for the garage and used this to help attach some trim around the edges from the inside to make it look a little more professional. Easy to clamp on and use, being done from the underside i didn't use any of the dowel pegs to fill the holes but rest of the kit was a help.
